3-Function Concealed Rain Shower System with Waterfall Tub Spout
3-Function Concealed Rain Shower System with Waterfall Tub Spout
Upgrade Your Bathroom Now
Save $30 on Orders $99+
Save $60 on Orders $329+
Save $200 on Orders $699+
Automatically Applied at Checkout
Available in stock

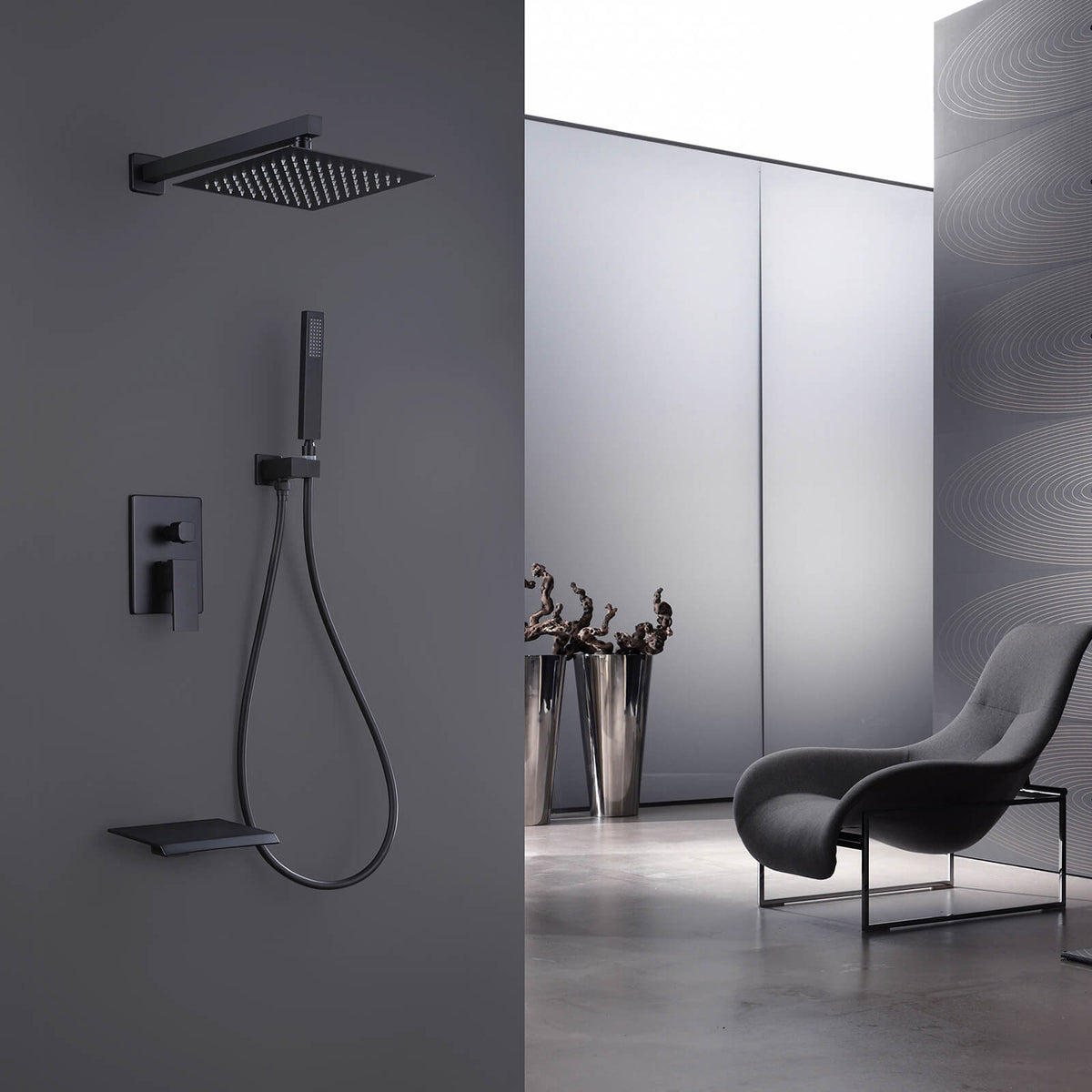

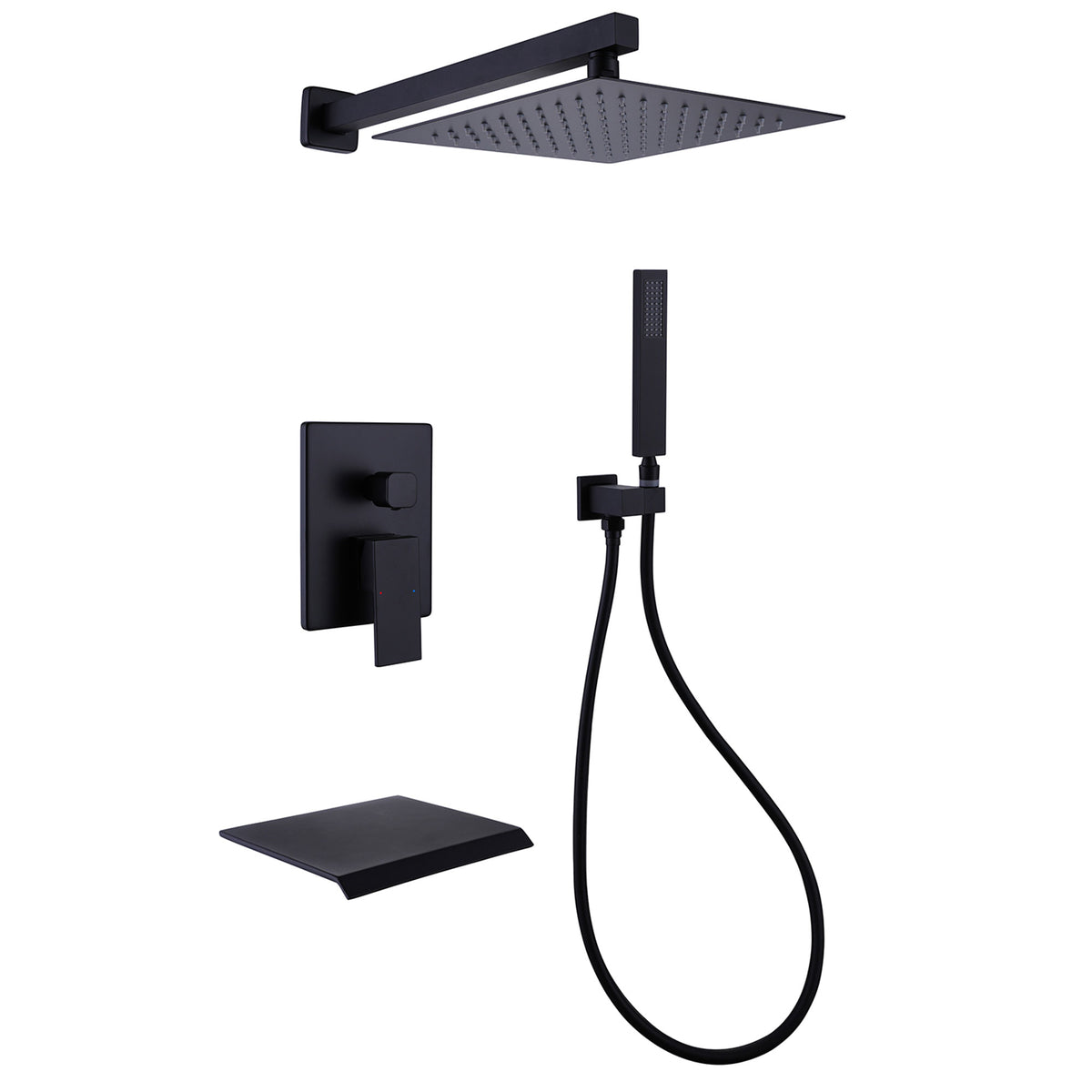

- 3-Function Concealed Tub Shower System: Switch between the square rainfall shower head, slim handheld shower, and waterfall tub spout for overhead showering, targeted rinsing, and bathtub filling.

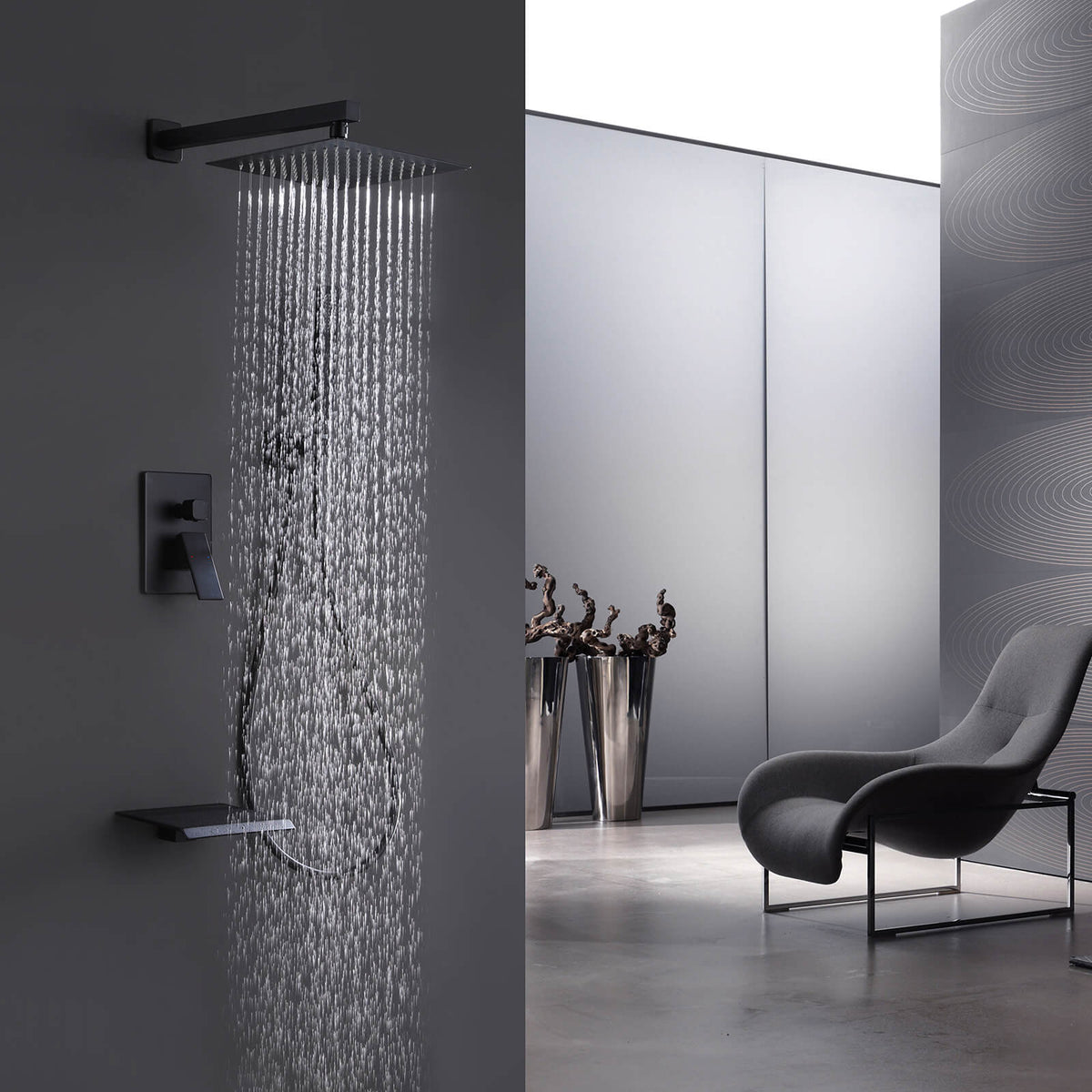

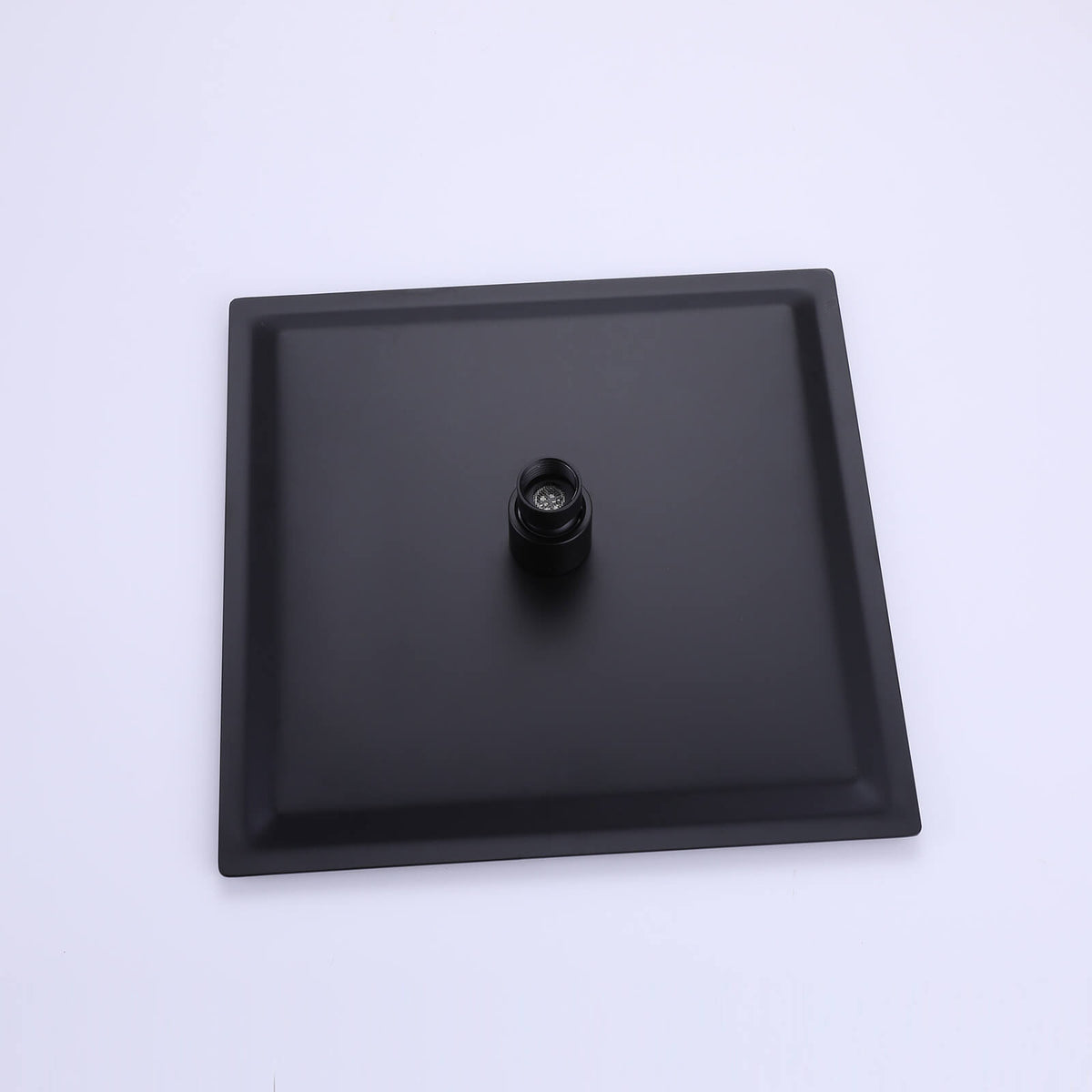

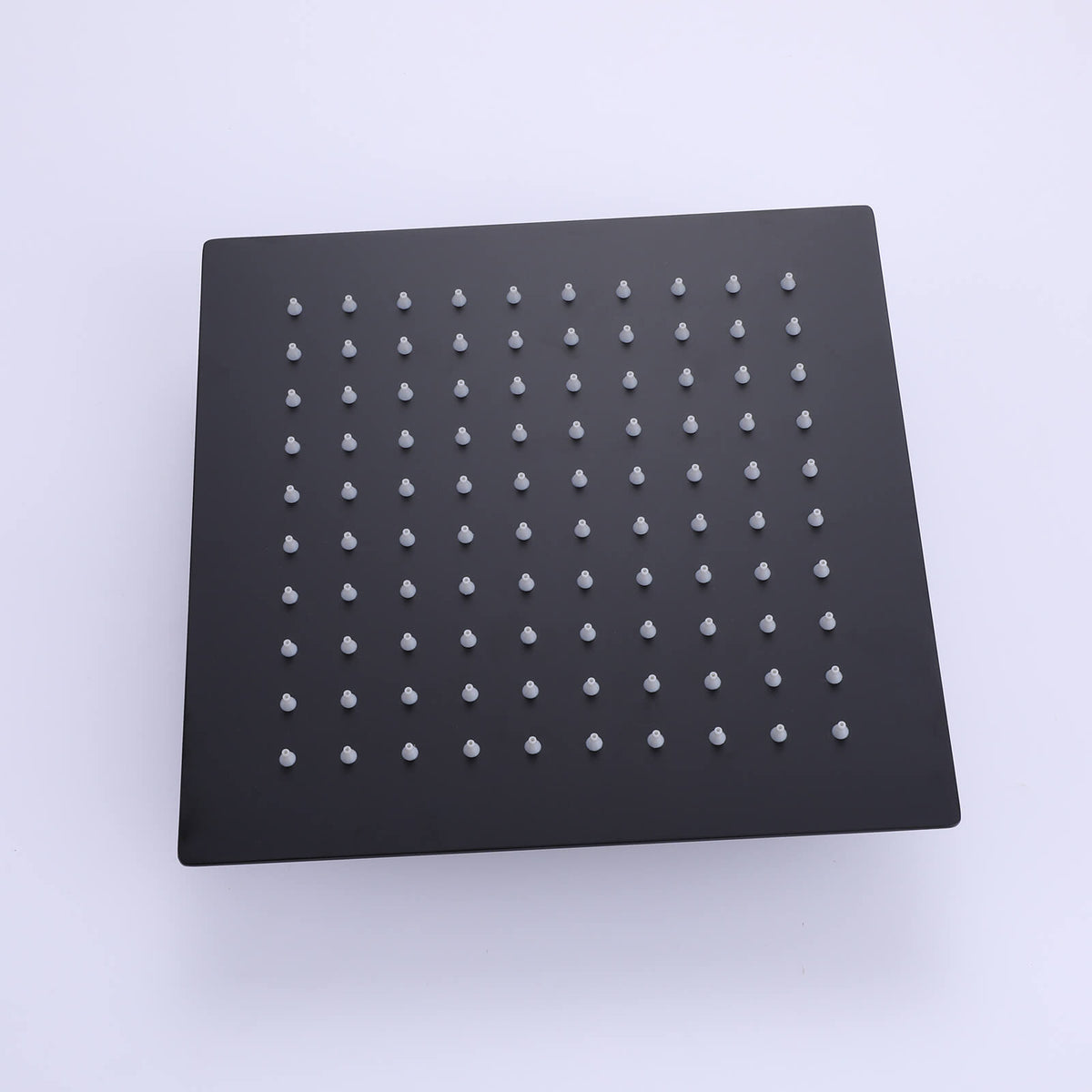

- 10" Square Rain Shower Head: The wall-mounted overhead shower provides broad rain-style coverage, while the slim square profile complements modern and minimalist bathroom designs.

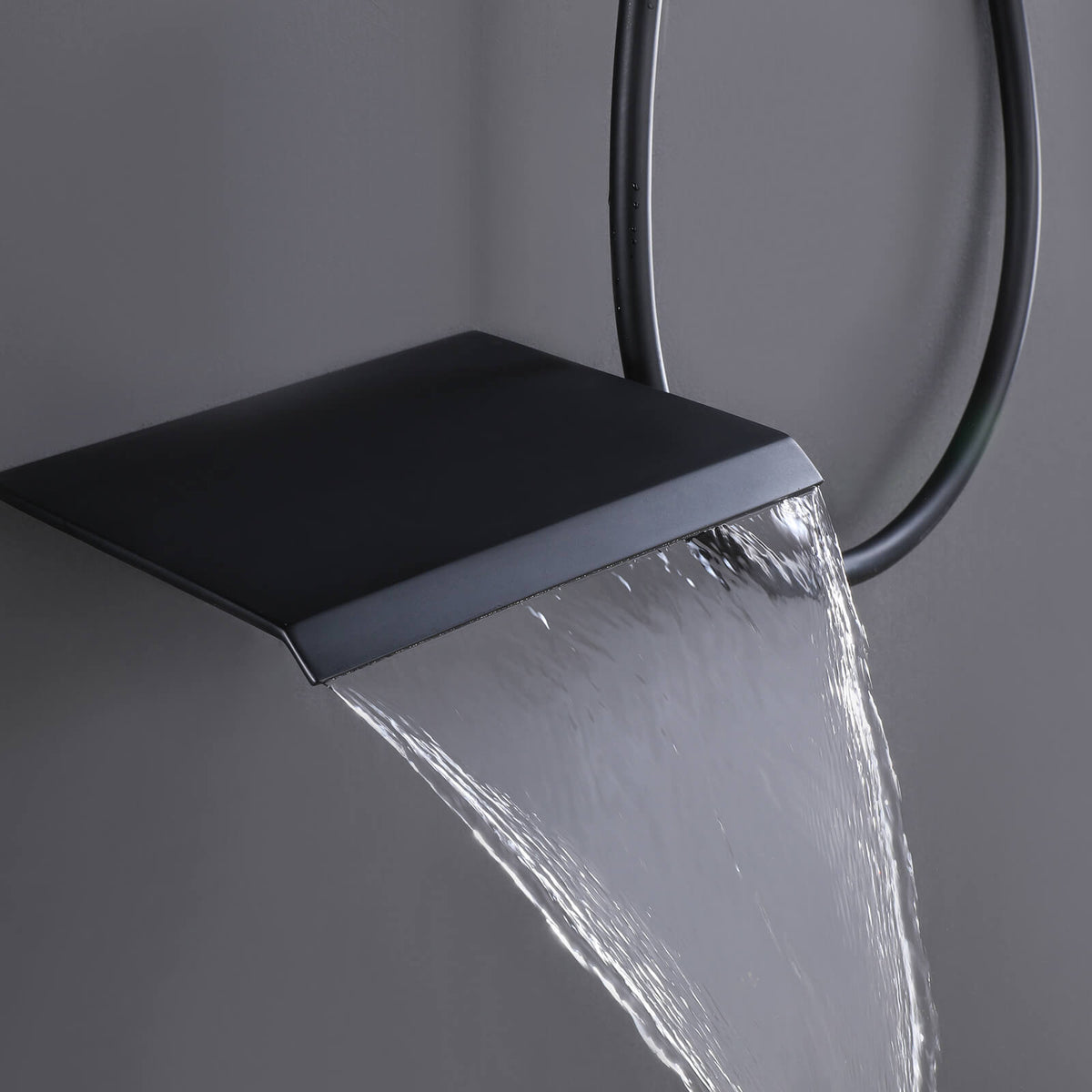

- Wide Waterfall Tub Spout: The 7-7/8" wall-mounted tub spout creates a broad sheet of water for bathtub filling and adds a distinctive waterfall effect to the shower-over-tub area.

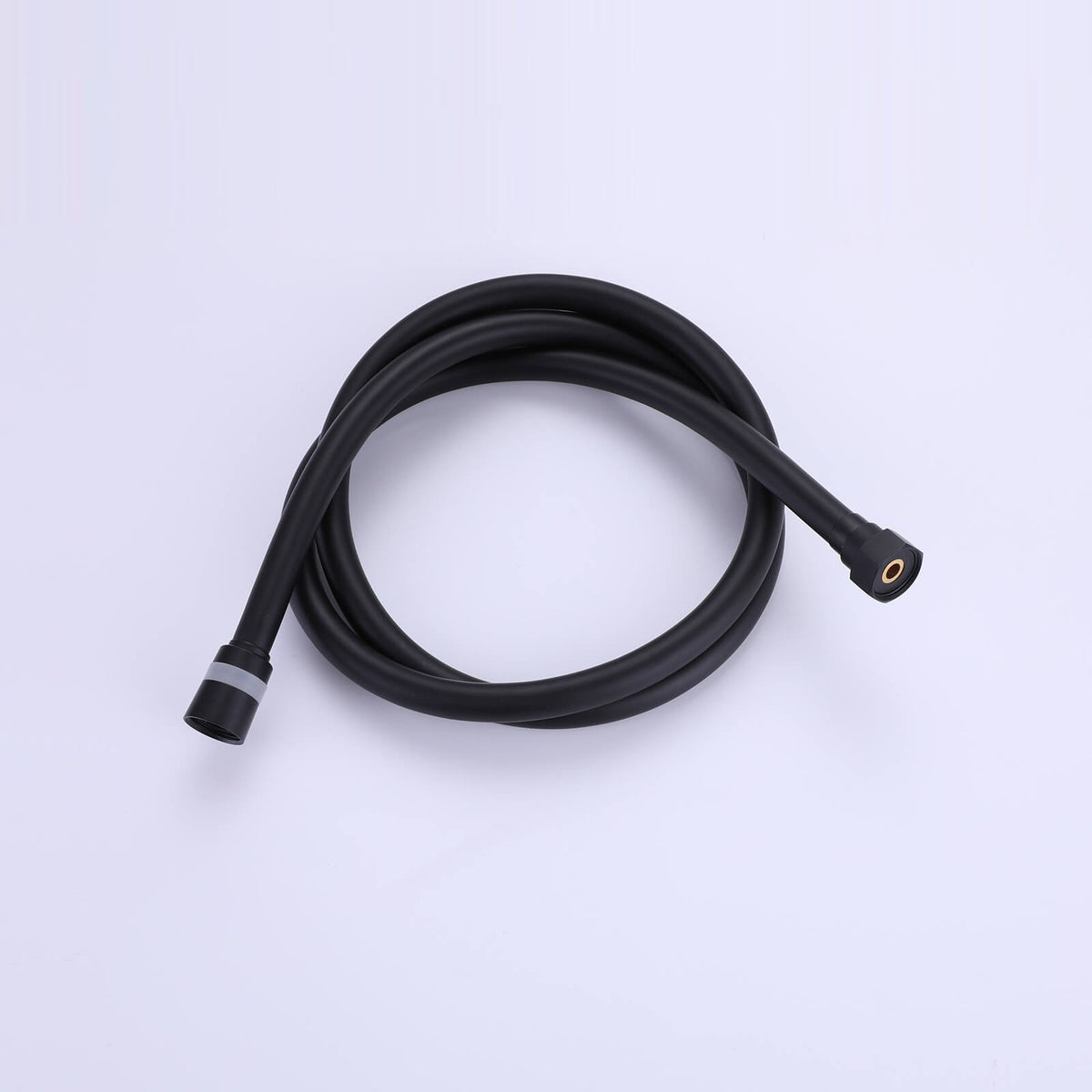

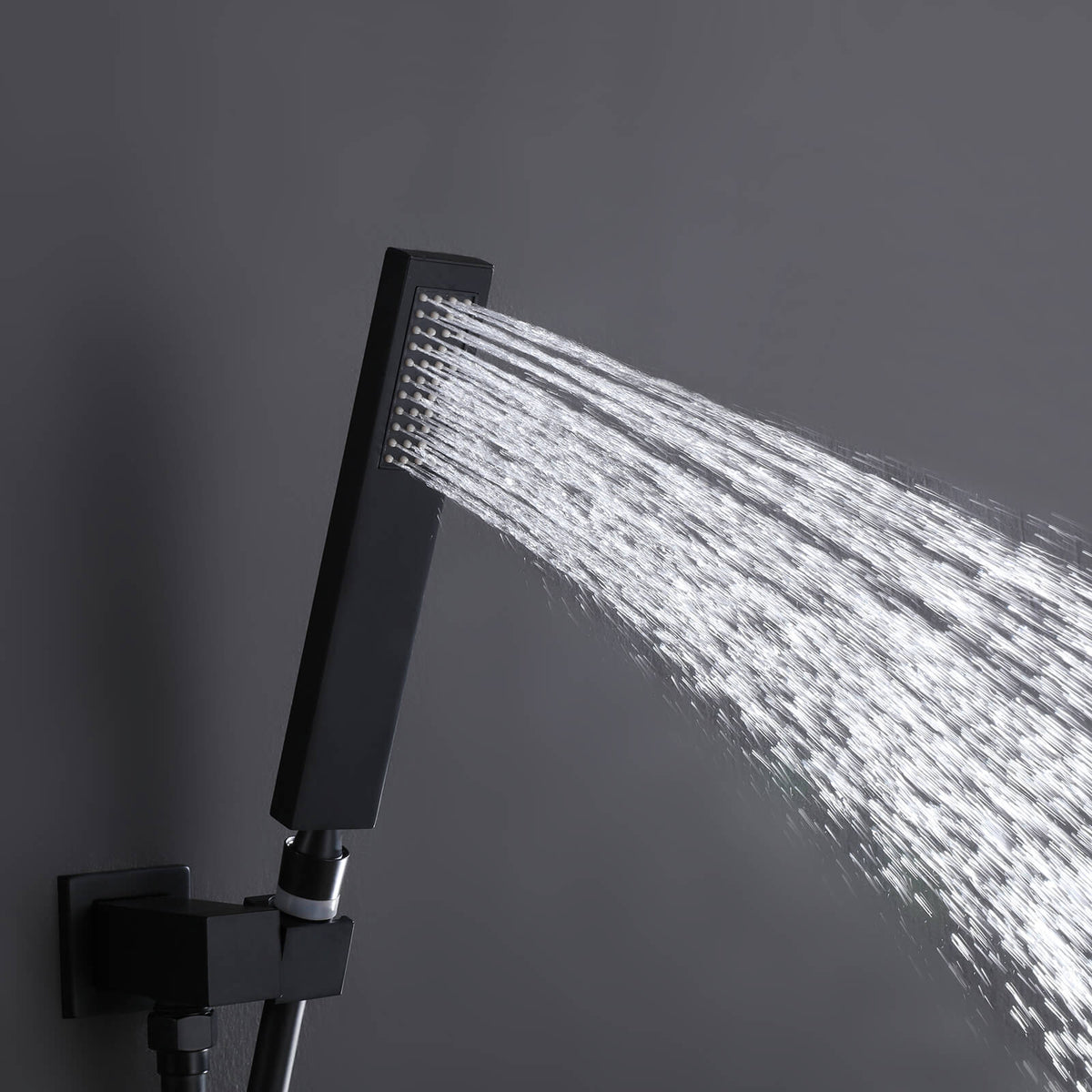

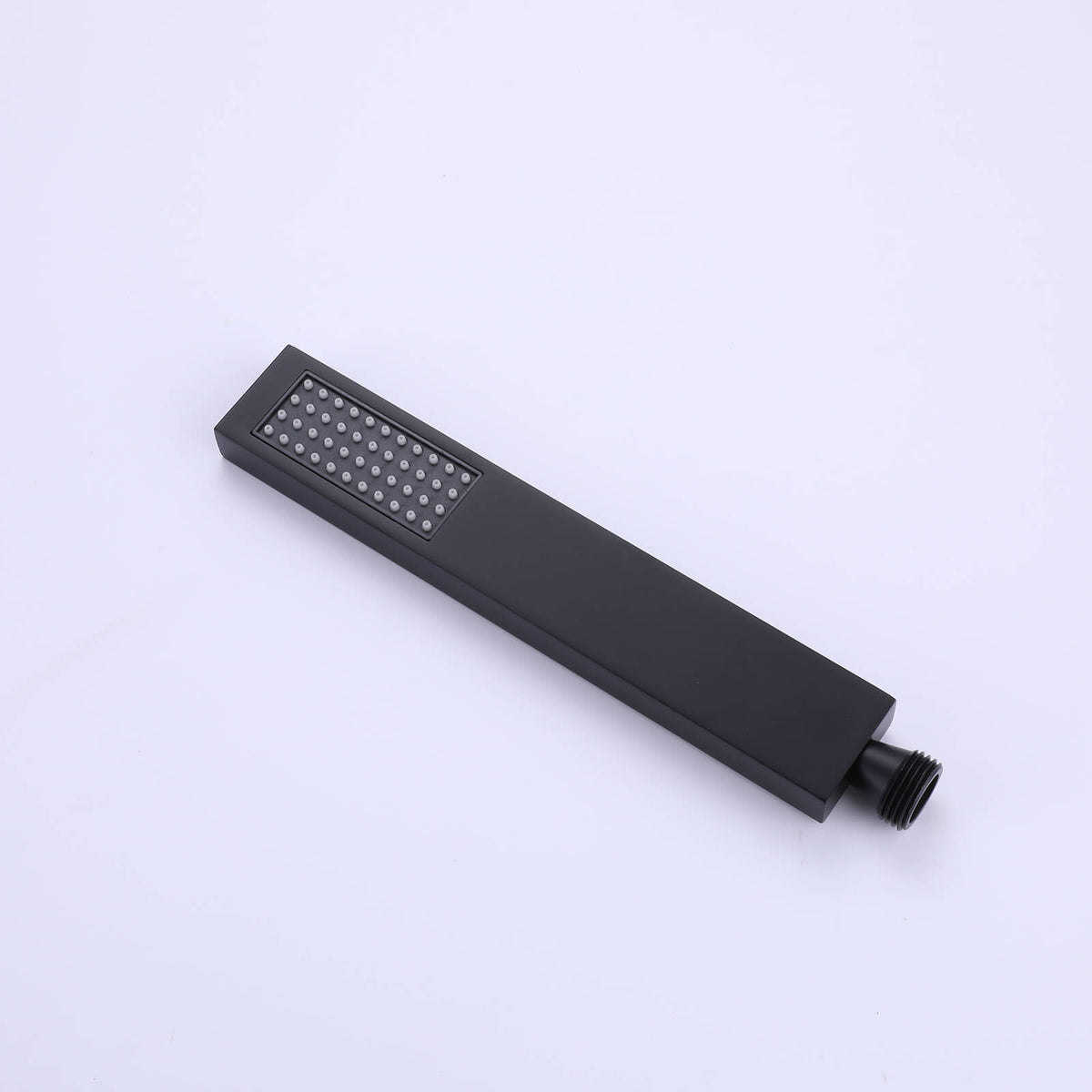

- Slim Handheld Shower: The rectangular hand shower provides focused rinsing for washing hair, cleaning the bathtub, bathing children, washing pets, and reaching lower areas.

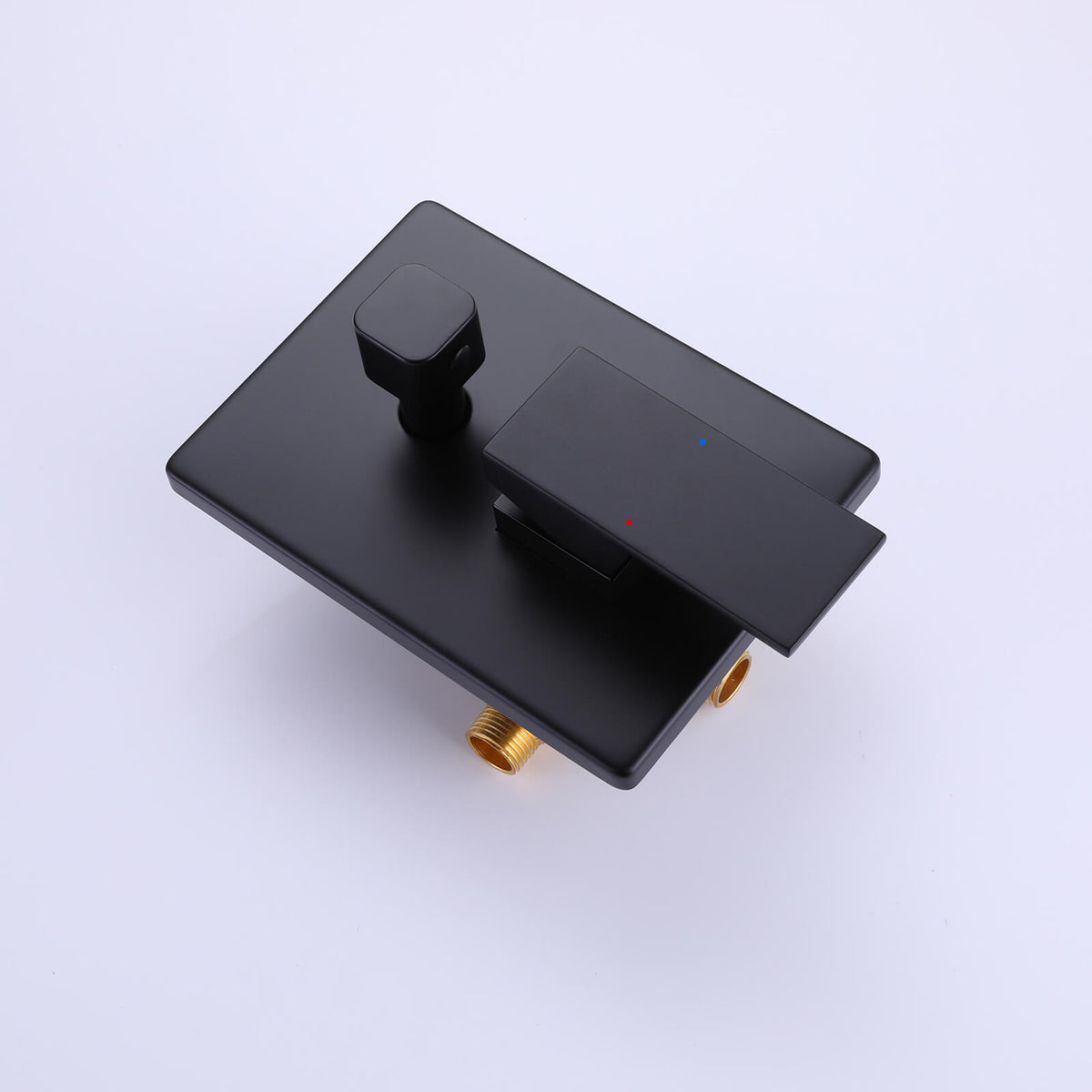

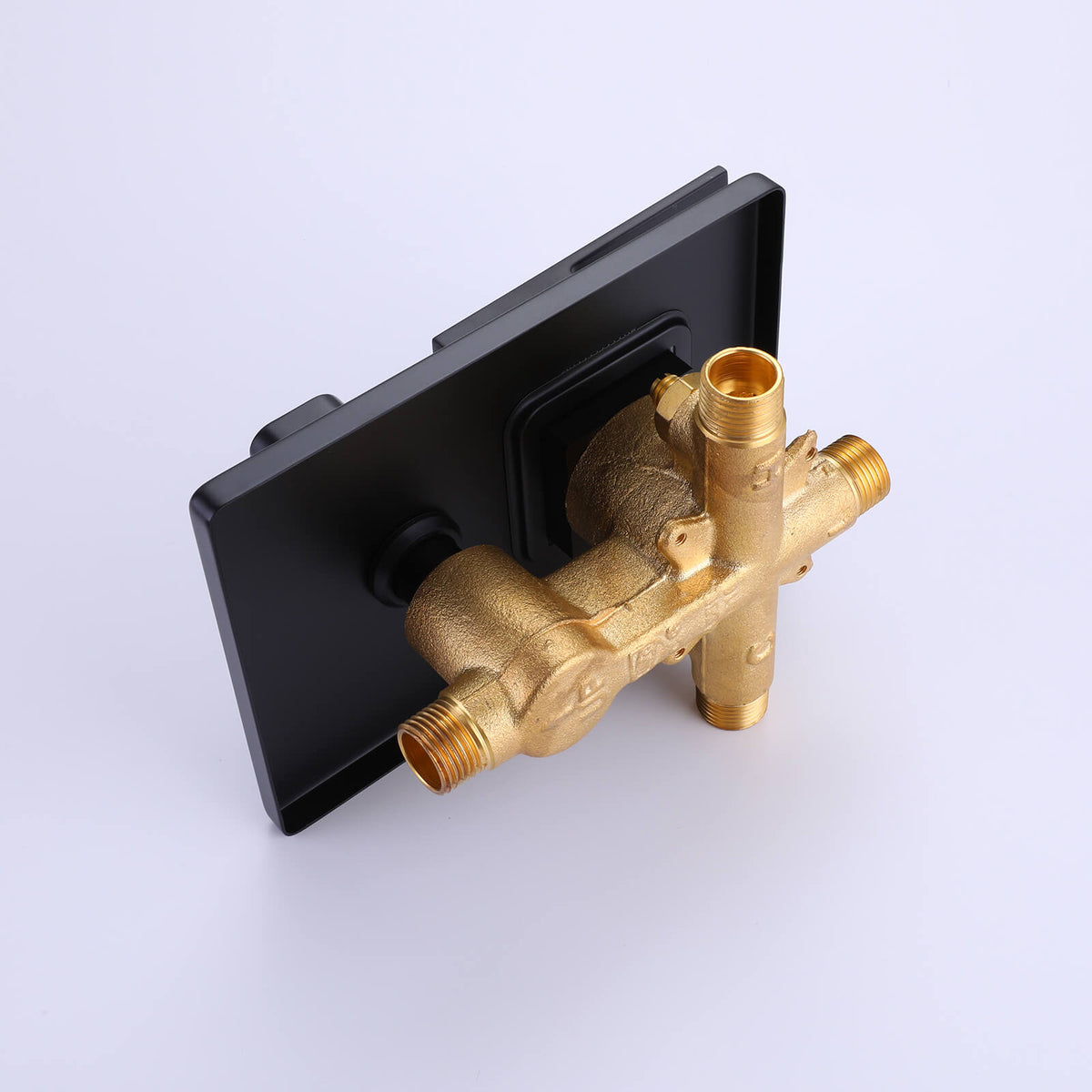

- Concealed Mixer with 3-Way Diverter: The lower lever controls water temperature and flow, while the separate upper control directs water to the rain shower, handheld shower, or waterfall tub spout.
Technical Specifications:
| Installation Type | Wall-Mounted |
|---|---|
| Shower Functions | Rain Shower Head, Handheld Shower, and Waterfall Tub Spout |
| Shower Head Size | 10" |
| Valve Type | Pressure Balance Valve with Diverter |
| Material | Solid Brass and 304 Stainless Steel |
| Finish Options | Matte Black |
| Flow Rate | 3.6 GPM |
Installation Notes:
- Flush the hot and cold water supply lines before connecting the concealed valve body.
- Confirm the valve rough-in depth and finished-wall thickness before closing the wall.
- Connect the three diverter outlets to the rain shower head, handheld shower, and waterfall tub spout according to the valve markings.

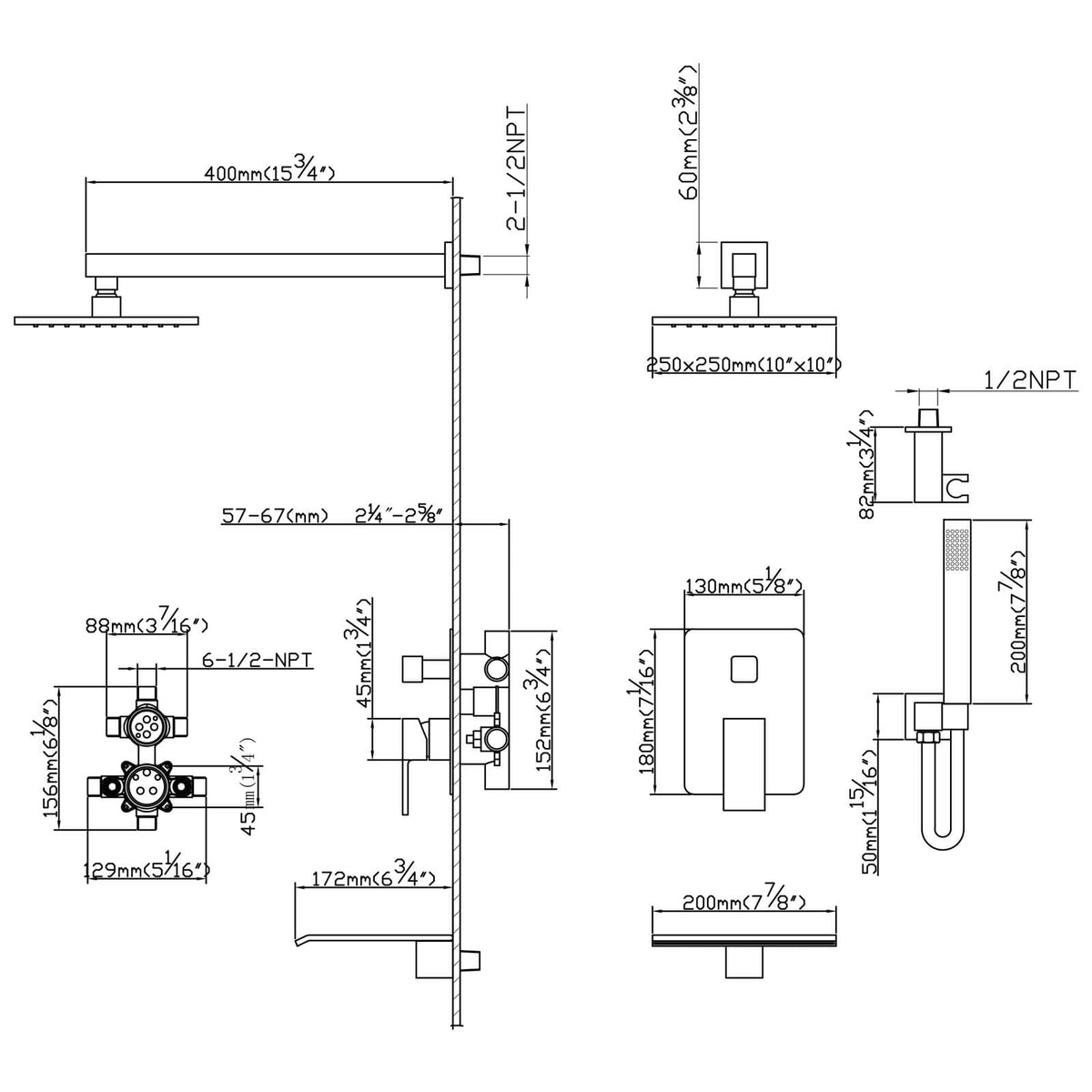

- Allow sufficient wall space for the 15-3/4" shower arm and confirm overhead clearance before installation.
- Install the 10" square rain shower head level and position it directly over the intended showering area.
- Confirm the waterfall tub spout height and its 7-7/8" projection before drilling or completing the finished wall.
- Seal the wall openings around the valve trim, shower arm, hand shower outlet, and tub spout to help prevent water intrusion.
- Test all three outlets and inspect every threaded connection for leaks before completing the installation.
- Professional installation is recommended for correct rough-in depth, outlet routing, waterproofing, and valve alignment.
Care & Maintenance:
- Wipe the valve trim, shower head, hand shower, hose, and tub spout with a soft cloth after use.
- Clean the matte black surfaces with mild liquid soap and clean water only.
- Avoid acidic cleaners, bleach, abrasive pads, polishing powders, and rough cleaning cloths.
- Gently rub the silicone nozzles on the rain shower head and handheld shower if mineral deposits cause uneven spray.
- Wipe the waterfall outlet regularly to reduce mineral buildup along the edge of the spout.
- Periodically operate the mixer handle and diverter to help maintain smooth movement between functions.
